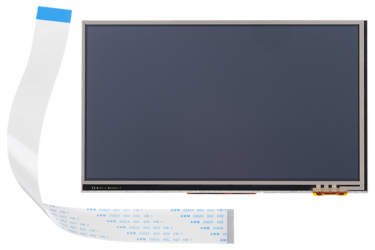

Resistive Touch Display
7.0” WVGA 800 x 3 (RGB) x 480 High Brightness Resistive Touch TFT Module. This display is directly compatible with the complete Colibri SoM family, as well as the Apalis T30 and the Apalis iMX6 Modules
하이라이트
Description
7.0” WVGA 800 x 3 (RGB) x 480 High Brightness Resistive Touch TFT Module for the use with Toradex Apalis and Colibri modules.
- 7" WVGA, a-Si TN TFT Display type
- 18-bit RGB + TCON
- 4-Wire Resistive Touch
- 40 pin FFC data cable to connect it with a Carrier Board
- No special drivers required
Out-of-the-Box Experience with Toradex Carrier Boards
This display is directly compatible with the complete Colibri SoM family, as well as the Apalis T30, Apalis iMX6 and Apalis iMX8X. It works with the following Toradex Carrier Boards out-of-the-box:
- Apalis Evaluation Board
- Ixora Carrier Board
- Colibri Evaluation Board
- Aster Carrier Board
- Viola Carrier Board
- Iris Carrier Board
Scope of delivery
- 7” Resistive Touch Display Panel
- 40 Pins 0.5mm FFC Ribbon Cable
캐리어 보드
캐리어 보드는 CoM에 필요한 신호 및 전력 수준을 제공합니다. 또한 USB, 이더넷, UART 및 HDMI와 같은 응용 프로그램별 연결 및 멀티미디어 인터페이스를 제공합니다.
SBC와 캐리어 보드에 대해 자세히 알아보기
Supported Modules
USB 3.0
USB 2.0
Ethernet
PCIe
External Bus
I2C
SPI
UART
IrDA
PWM
GPIO
Analog Input
Serial ATA
SDIO/SD/MMC
CAN
JTAG
Switches
LEDs
LVDS
HDMI
Digital Audio
S/PDIF In / Out
VGA
RGB
Capacitive Touch Interface
Resistive Touch
Camera Parallel Interface
Camera Serial Interface
Analog Audio Line in
Analog Audio Mic in
Analog Audio Headphone out
Type Specific Board Connector
USB-to-RS232 Transceiver
RTC on Board
Included Accessory
Altium CAE Data Freely Available
Supply Voltage
On-Board Power Supplies
Size
Temperature
지금 구매
1 모듈, 7 캐리어 보드
V1.0B
PN: 12131001
Resistive Touch Displays it for Apalis & Colibri modules
Touch: 4-Wire Resistive Touch. 40 pin FFC cable (250mm) to connect it with a Carrier Board. No special drivers required. -20° to 70° C Temp, Range. Size: 164.9 x 100.0 x 13.0 mm.
-
수량>0
-
단가US$100.00
사용 목적: For Evaluation/Development
재고 있음
V1.3A
PN: 01331300
Small form-factor Apalis Arm Computer Module family Carrier Board
Connectivity: USB 3.0: 2x Host, USB 2.0: 1x Host/ 1x OTG, Gigabit Ethernet, 2x I2C, 1x SPI, 4x PWM, 4x ADC, 2x CAN, 2x LEDs, up to 40 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x/ 1x S/PDIF In/ Out, 1x 10 Bit Camera Parallel Interface, 4/5-wire Resistive Touch
Physical: 7-27V DC Supply Voltage, 5V 6A, 3.3V 8A On-Board Power Supplies, Size: 125 x 90 mm
-
수량1-99>99
-
단가US$134.40
사용 목적: For End Products
재고 있음
V1.1Z
PN: 01151125
Connectivity: USB 3.0: 1x Host, 1x OTG, USB 2.0: 4x Host, Gigabit Ethernet, 3x I2C, 2x SPI, 4x PWM, 4x ADC, 2x CAN, 8x Switches, 8x LEDs, up to 135 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x (Out also on TOSLINK) S/PDIF In/ Out, 1x 8/10/12 Bit Camera Parallel Interface, 4/5-wire Resistive Touch
Physical: 7-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 250 x 250 mm
-
수량>0
-
단가US$349.40
사용 목적: For Evaluation/Development
재고 있음
V3.2B
PN: 01013201
Connectivity: USB 2.0: 4x Host, 1x OTG/Client, 10/100 Mbit Ethernet, 4x I2C, 4x SPI, 4x PWM, 4x ADC, 1x CAN, 6x Switches, 4x LEDs, up to 158 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x Camera Parallel Interface, 4/5-wire Resistive Touch
Physical: 7-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 200 x 200 mm
-
수량>0
-
단가US$229.00
사용 목적: For Evaluation/Development
재고 있음
V2.0B
PN: 01352001
Small form-factor Pico-ITX Colibri Arm Computer Module family Carrier Board
Connectivity: USB 2.0: 1x Host/ 1x OTG, 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, up to 26 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 4/5-wire Resistive Touch
Physical: 6-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 100 x 72 mm
-
수량1-99>99
-
단가US$79.95
사용 목적: For End Products
재고 있음
V1.2B
PN: 01371201
Connectivity: USB 2.0: 2x Host, 1x Client (Shared), 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, 1x (Available with Colibri VFxx and iMX) CAN, up to 35 GPIOs
Multimedia: 4-wire Resistive Touch
Physical: 5V DC +/- 5% Supply Voltage, 5V (External), 3.3V 3A On-Board Power Supplies, Size: 74 x 74 mm
-
수량1-99>99
-
단가US$33.60
사용 목적: For End Products
재고 있음
V1.2B Plus
PN: 01421201
Connectivity: USB 2.0: 2x Host, 1x Client (Shared), 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, 1x (Available with Colibri VFxx and iMX) CAN, up to 35 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x Camera Parallel Interface, 4-wire Resistive Touch
Physical: 5V DC +/- 5% Supply Voltage, 5V (External), 3.3V 3A On-Board Power Supplies, Size: 74 x 74 mm
-
수량1-99>99
-
단가US$40.30
사용 목적: For End Products
재고 있음
V1.1B
PN: 01431101
Small form-factor with header compatible with Arduino Uno and Raspberry Pi (RPi) maker boards
Connectivity: USB 2.0: 2x Host, 1x Client (Shared), 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, 1x (Available with Colibri VFxx and iMX) CAN, up to 3x LEDs, up to 39 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x Camera Parallel Interface, 4-wire Resistive Touch
Physical: 5V DC +/- 5% Supply Voltage, 3.3V 3A On-Board Power Supplies, Size: 100 x 80 mm
-
수량>0
-
단가US$69.90
사용 목적: For Evaluation/Development
재고 있음
× ![]()
