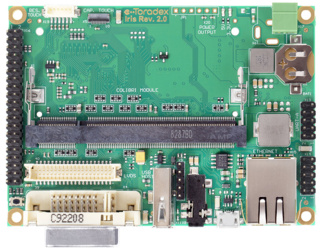

Iris Carrier Board
Iris is a compact carrier board for the Colibri family of computer-on-modules. Iris supports all modules in the Colibri product family, and includes support for the additional/enhanced functionality on the Colibri T20 and T30 products.
하이라이트
The Iris carrier board is compatible with the Colibri Arm family of modules. This low cost Arm development board, Iris, packs a large number of Colibri features into a very optimised small form factor which has been designed to be cost effective in small to medium volume applications. The Iris Carrier Board is designed to be used with the Colibri iMX8X (based on NXP® i.MX 8 SoCs), Colibri iMX6ULL (based on NXP® i.MX 6ULL SoCs), Colibri iMX6 (based on the NXP® i.MX 6 SoCs) and the Colibri iMX7 (based on NXP® i.MX 7 SoCs) Computer on Modules..
The majority of standard interfaces provided by the Colibri modules are supported by the Iris carrier board using a combination of real-world connectors, card slots and 2.54 mm pitch pin headers.
Communication interfaces include USB 2.0 host and client, and 100 Mbit Fast Ethernet. Support for common industrial interfaces including I2C, SPI, RS232, CAN and GPIO makes the Iris carrier board perfectly suited for industrial and embedded applications.
Supported multimedia interfaces include DVI, LVDS, VGA, TFT LCD, Analogue Audio and Resistive Touch.
액세서리
Toradex는 최종 제품에 직접 사용할 수 있는 완제품 액세서리를 제공합니다. 이러한 액세서리 중 일부에 대한 설계 파일에는 조립 도면, 회로도 및 Altium 프로젝트가 포함되어 있습니다.
Toradex는 웹샵에 나열된 주변 기기를 테스트하고 카메라, 모뎀, 디스플레이, 센서 등의 공급업체와 직접 협력하여 Toradex SoM과의 통합을 가능한 쉽게 만듭니다.
- 1 Fastener bag contains 100 Fasteners
- Plug and Play (Windows Compact Embedded 6/7 compatible)
- BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes
- WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes
- Can be setup as a ad-hoc network via peer to peer communications
- No external power supply required
- Power Adapter: 12VDC 30W with international plugs
- Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board
로드맵
Min. Product Commitment
2030
Hardware Roadmap
This roadmap indicates how the product is planned from a Toradex hardware development point of view. This is not a detailed release date representation, but visualization of our internal product development timeline.
For details about the Toradex phase-over policy please refer to the PCN Policy Page.
For more details about PID8 level changes and historical releases please refer to the developer page.
- 2023
- 2024
- 2025
- 2026
- 2027
- 2028
0135 Iris Carrier Board
- Volume Production
지금 구매
1 모듈, 4 액세서리
V2.0B
PN: 01352001
Small form-factor Pico-ITX Colibri Arm Computer Module family Carrier Board
Connectivity: USB 2.0: 1x Host/ 1x OTG, 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, up to 26 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 4/5-wire Resistive Touch
Physical: 6-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 100 x 72 mm
-
수량1-99>99
-
단가US$79.95
사용 목적: For End Products
재고 있음
V1.0A
PN: 21041000
LM816 USB WiFi for Apalis and Colibri Family
Plug and Play (Windows Compact Embedded 6/7 compatible). BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes. WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes. Can be setup as a ad-hoc network via peer to peer communications. -10° to 60° C Temp, Range. Size: 17 x 15 x 8 mm.
-
수량1-99>99
-
단가US$28.05
사용 목적: For Evaluation/Development
재고 있음
V1.1C
PN: 01131102
Accessory kit for Toradex carrier boards
Power Adapter: 12VDC 30W with international plugs. Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board.
-
수량>0
-
단가US$50.00
사용 목적: For Evaluation/Development
재고 있음
× ![]()
