Aster Carrier Board

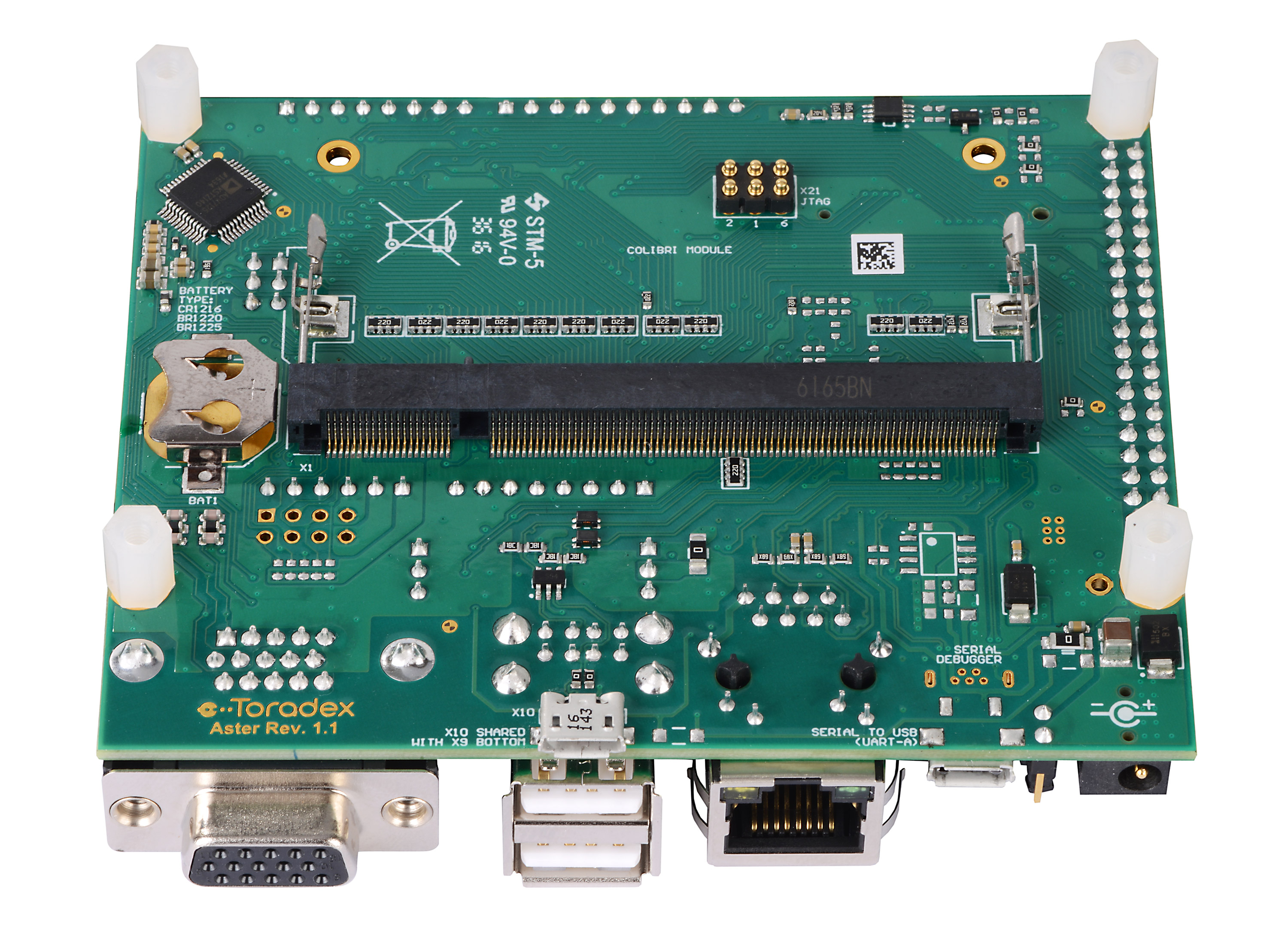

Aster is a carrier board for the Colibri Family of Computer on Modules. Aster has been designed to allow fast prototyping and evaluation of solutions using industry proven Colibri SoM pin compatible product line.
하이라이트
Arduino Uno and Raspberry Pi Compatible Pin Headers
Aster carrier board has headers compatible with Arduino Uno and Raspberry Pi (RPi) maker board, thus enabling users to use a huge variety of third party shields/add-on boards. Developers can easily and quickly evaluate peripherals, sensors and proof of concepts before starting the product carrier board design.
JTAG for convenient Heterogeneous Multicore Systems Development
Aster exposes a JTAG interface for convenient development and debug Heterogeneous Multicore Systems like the Colibri iMX8X, Colibri iMX7 or Colibri VF61. In many cases it can be powered directly via USB micro connector and an integrated Serial To USB converter reduces the additional required hardware to get started to an USB micro cable.
As with all Toradex Carrier Board full design data including the complete Altium Design Project files are available.
The size of the board is 100mm x 80 mm.
액세서리
Toradex는 최종 제품에 직접 사용할 수 있는 완제품 액세서리를 제공합니다. 이러한 액세서리 중 일부에 대한 설계 파일에는 조립 도면, 회로도 및 Altium 프로젝트가 포함되어 있습니다.
Toradex는 웹샵에 나열된 주변 기기를 테스트하고 카메라, 모뎀, 디스플레이, 센서 등의 공급업체와 직접 협력하여 Toradex SoM과의 통합을 가능한 쉽게 만듭니다.
- Touch: 4-Wire Resistive Touch
- 40 pin FFC cable (250mm) to connect it with a Carrier Board
- No special drivers required
- 40 pin and 10 pin FFC cable (250mm) to connect it with a Carrier Board
- Atmel touch driver
- Plug and Play (Windows Compact Embedded 6/7 compatible)
- BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes
- WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes
- Can be setup as a ad-hoc network via peer to peer communications
- No external power supply required
- Parallel data output format: 8-Bit Parallel ITU-R BT.656 with external HSync and VSync
- No external power supply required
- Compatible with Colibri Evaluation Board and Apalis Evaluation Board
지금 구매
1 모듈, 5 액세서리
V1.1B
PN: 01431101
Small form-factor with header compatible with Arduino Uno and Raspberry Pi (RPi) maker boards
Connectivity: USB 2.0: 2x Host, 1x Client (Shared), 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, 1x (Available with Colibri VFxx and iMX) CAN, up to 3x LEDs, up to 39 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x Camera Parallel Interface, 4-wire Resistive Touch
Physical: 5V DC +/- 5% Supply Voltage, 3.3V 3A On-Board Power Supplies, Size: 100 x 80 mm
-
수량>0
-
단가US$69.90
사용 목적: For Evaluation/Development
재고 있음
V1.0B
PN: 12131001
Resistive Touch Displays it for Apalis & Colibri modules
Touch: 4-Wire Resistive Touch. 40 pin FFC cable (250mm) to connect it with a Carrier Board. No special drivers required. -20° to 70° C Temp, Range. Size: 164.9 x 100.0 x 13.0 mm.
-
수량>0
-
단가US$100.00
사용 목적: For Evaluation/Development
재고 있음
V1.0A
PN: 21041000
LM816 USB WiFi for Apalis and Colibri Family
Plug and Play (Windows Compact Embedded 6/7 compatible). BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes. WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes. Can be setup as a ad-hoc network via peer to peer communications. -10° to 60° C Temp, Range. Size: 17 x 15 x 8 mm.
-
수량1-99>99
-
단가US$28.05
사용 목적: For Evaluation/Development
재고 있음
V2.0C
PN: 01192002
Analogue Camera Adapter for Apalis & Colibri modules
Parallel data output format: 8-Bit Parallel ITU-R BT.656 with external HSync and VSync. No external power supply required. Compatible with Colibri Evaluation Board and Apalis Evaluation Board. -10° to 60° C Temp, Range. Size: 60 x 50 x 9.4 mm.
-
수량>0
-
단가US$50.00
사용 목적: For Evaluation/Development
재고 있음
× ![]()
